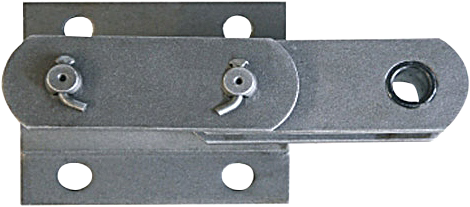

NSE型高速板鏈
產品詳情
產品技術參數 | PRODUCT SPECIFICATIONS |
型號 | 節距 | 滾子外徑 | 內節內寬 | 銷軸直徑 | 銷軸長度 | 鏈板厚度 | 鏈板寬度 | 六孔板高 | 螺孔直徑 | 鏈斗安裝 | 載荷 |
P | D | W | D | L | T | B | K | D | G*E | T | |
NSE200 | 100 | 44.5 | 51.8 | 19.1 | 120 | 10 | 60 | 150 | 18 | 105*100 | 38 |
NSE300 | 100 | 48.5 | 57.6 | 22.2 | 126 | 10 | 75 | 150 | 18 | 105*100 | 55 |
NSE300B | 100 | 51 | 57.6 | 25.4 | 126 | 10 | 80 | 150 | 18 | 105*100 | 65 |
NSE400 | 125 | 63.5 | 67.4 | 31.75 | 148 | 12 | 90 | 180 | 18 | 130*125 | 75 |
NSE500 | |||||||||||
NSE500B | 125 | 70 | 67.4 | 35 | 148 | 12 | 100 | 180 | 18 | 130*125 | 85 |
NSE600 | 125 | 70 | 75 | 35 | 170 | 16 | 100 | 180 | 18 | 130*125 | 100 |
NSE700 | |||||||||||
NSE800 | 150 | 75 | 82.5 | 38.5 | 177 | 16 | 110 | 210 | 22 | 160*150 | 125 |
NSE1000 | 150 | 82 | 88.6 | 41.7 | 184 | 16 | 120 | 210 | 22 | 160*150 | 150 |
NSE1200 | 150 | 90 | 88.6 | 50 | 194 | 18 | 130 | 225 | 22 | 170*150 | 180 |
